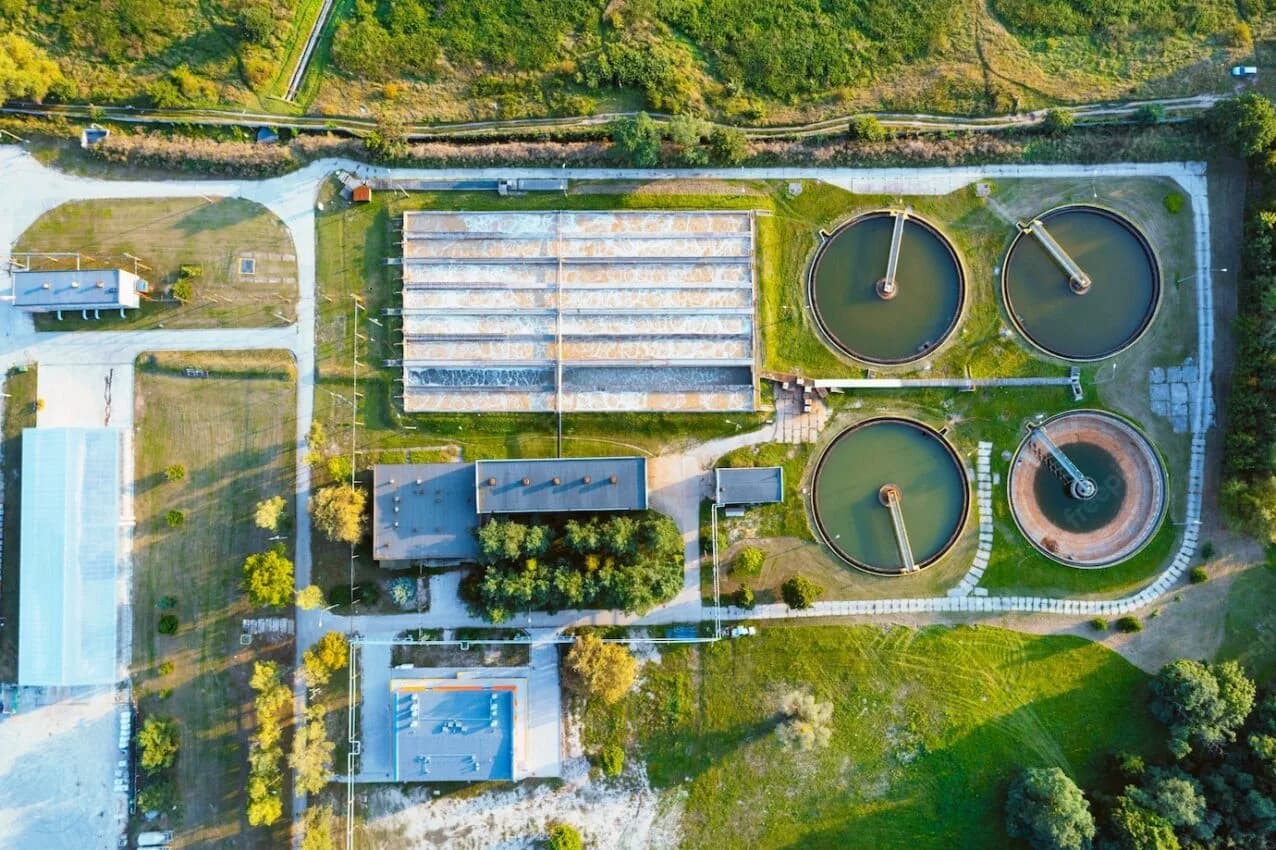

The Civil Engineer’s Role in the Wastewater Treatment Process

What does a civil engineer do on a wastewater treatment plant?

The civil engineer usually owns the hydraulics, the piping and everything that touches the site. Texas rules spell out much of that work.

The definitions in 30 TAC §217.2 describe a collection system as the pipes, lift stations, force mains and other structures that carry domestic wastewater to a treatment facility. The owner submits a sealed final engineering report under 30 TAC §217.10 within 30 days of TCEQ's written request, and much of it is civil work:

• A site map with the boundary, buffer zones and the 100-year floodplain
• A discharge route or land application map
• A plot of the hydraulic gradient at peak flow for all gravity lines
• For a collection system, lift station calculations and pump curves at minimum, maximum and design flows

The process side of the report, unit sizes, loadings and aeration demand, often sits with an environmental or process engineer. The civil engineer makes those units fit the site and connect at the right elevations.

How does the wastewater treatment process work, step by step?

Wastewater is collected, screened, settled, treated biologically, settled again, sometimes filtered, then disinfected before discharge, reuse or land application. The removed solids get their own treatment.

These steps follow EPA's Primer for Municipal Wastewater Treatment Systems (2004) and the unit types in TCEQ's wastewater design rules in 30 TAC Chapter 217.

1. Collection. Gravity sewers, lift stations and force mains bring wastewater to the plant.
2. Preliminary treatment. Screens catch rags. A grit chamber settles out sand and stones before they wear out pumps.
3. Primary clarification. Suspended solids sink as primary sludge and floating scum is skimmed off.
4. Biological treatment. Microorganisms, supplied with air, consume dissolved organic matter. EPA says secondary treatment can remove up to 90 percent of it. Options include activated sludge, oxidation ditches, sequencing batch reactors, membrane bioreactors and trickling filters, and flow, site and permit limits drive the choice.
5. Secondary clarification. Biological solids settle out. In activated sludge, part returns to the aeration basin.
6. Filtration, where the permit needs it. Filters polish out the remaining fine solids.
7. Disinfection. Chlorine is most common, with UV and ozone also used. Chlorinated effluent often needs dechlorination.
8. Solids handling. Sludge is thickened, often stabilized and dewatered before disposal or use as biosolids.

Treated effluent is not pure water. It is water that meets its permit. The federal floor for publicly owned plants is the secondary treatment standard in 40 CFR §133.102: BOD5 and suspended solids at or below 30 mg/L as a 30-day average, at least 85 percent removal, and pH between 6.0 and 9.0. Your permit limits set the actual design.

Why does the hydraulic profile matter so much?

Because it decides whether the plant runs on gravity or on pumps. A good profile lifts the flow once at the headworks and lets it fall through every unit after that, even at peak flow.

The profile shows the water surface in every channel, tank, weir and pipe. Add up the head losses at peak flow and you get the elevation the headworks has to start at. Get it wrong and a clarifier overtops, or the plant needs a second pump station nobody planned for. For a refresher, see how to read a hydraulic grade line.

The profile also has to clear flood water. Under 30 TAC §217.35, the 100-year flood elevation goes on the hydraulic profile, and TCEQ will not approve a treatment unit in the 100-year floodplain unless open process tanks and electrical units are protected from inundation.

What decides where a wastewater treatment plant can go?

Gravity, the discharge point and the setback rules. The plant wants the low end of its service area, a path to its discharge or reuse site, and enough land for its buffer.

In Texas, 30 TAC §309.13 lists unsuitable site characteristics. Its odor rule sets a buffer of 500 feet from lagoons with anaerobic zones and 150 feet from other treatment units to the property line. You comply by owning the buffer land, by legal restrictions that keep homes out of the part you do not own, or with an approved nuisance odor prevention request.

A plant that discharges to a creek or river also needs a permit. Texas took over the federal NPDES program on September 14, 1998, and TCEQ's Texas Pollutant Discharge Elimination System (TPDES) controls discharges of pollutants to surface waters.

On a development site the plant competes with lots for the same ground. My advice is to place the plant and its buffer first, not in the last open corner of the plat. That is the first thing we look at in wastewater engineering for Texas land development.

Who owns and operates wastewater treatment plants?

Cities, utilities and special districts commonly own them, and private owners, including developers, can too. Licensed operators run them day to day.

EPA's 2004 primer counted more than 16,000 publicly owned treatment plants in the United States and its territories. In Texas, TCEQ's general guide to Texas water districts says municipal utility districts provide water, wastewater and drainage service. A private plant follows the same Chapter 217 design rules.

Under 30 TAC §30.331, anyone who operates a domestic wastewater treatment facility or supervises collection system work must be licensed or registered, other than an operator in training. I have found operators are often the best reviewers of a layout. Ask them where the daily rounds get slow before the design is fixed.

What should you have ready before plant design starts?

Flows, a disposal path, a surveyed site and a buffer you can hold. Without those, a layout is a guess.

1. Do you have design flows for each phase, including peak flow?
2. Have you picked a disposal path: discharge, reuse or land application?
3. Do you have a boundary and topographic survey with the 100-year floodplain mapped?
4. Can the site hold the setback buffer, or do you control the land around it?
5. Do you know who will own and operate the plant?

If any of the first four is a no, the site is not ready to lay out.

A note on limits: this is general education on federal and Texas rules as published in October 2026, not a design or a permit opinion. Your permit, local rules and your engineer of record govern.

Frequently asked questions

What is the difference between a civil and an environmental engineer in wastewater?

The environmental or process engineer usually focuses on treatment chemistry and biology, the civil engineer on hydraulics, piping, the site and the collection system. Texas rules ask for a licensed professional engineer with expertise in designing and building treatment facilities and collection systems, not a particular discipline title.

Does a wastewater treatment plant design need a PE seal in Texas?

Yes. Chapter 217 defines the engineer as a professional engineer licensed in Texas, and the final engineering report is signed and sealed by that engineer.

I'm a developer in Texas with a subdivision too far from city sewer. What civil work does an on-site treatment plant add to my site plan?

Expect a plant site sized for the buffer you can hold, an access road, power, a collection system and probably a lift station, and a route to the discharge or reuse point. The plant has to stay out of the 100-year floodplain or be protected from it. A surface discharge needs a TPDES permit.

I manage a small Texas utility and our plant is getting close to its permitted flow. Should I call a process engineer or a civil engineer first?

Start with an engineer who will check your actual flows and loadings against the plant's capacity. Under 30 TAC §217.34, a re-rating or alteration is designed from the plant's own operating data, including its last five years of flow records. Bring in both disciplines before picking an expansion option.

Who regulates wastewater treatment plants in Texas?

TCEQ. It sets design criteria in 30 TAC Chapter 217, siting rules in Chapter 309 and operator licensing in Chapter 30, and it issues TPDES discharge permits.
