Quick Answer

The hydraulic grade line, commonly referred to as the HGL, represents the elevation to which water would rise in an open standpipe at any point in a pressurized system, or the actual water surface elevation in a gravity system. It tells you whether a system has adequate pressure, whether pipes are flowing full, whether manholes are at risk of surcharging, and whether the design will work under real operating conditions. An HGL that rises above a pipe crown, approaches a manhole rim, or drops below minimum pressure thresholds is a warning that the design has a problem.

What the Hydraulic Grade Line Actually Represents

In a pressurized water distribution system, the HGL represents the total energy available to move water through the pipe at any given location, expressed as an elevation. The height of water above the pipe centerline is the pressure in the system at that point. Dividing that height in feet by 2.31 gives pressure in pounds per square inch.

In a gravity sewer or stormwater system, the HGL represents the actual water surface elevation inside the pipe or structure. When flow is below pipe capacity, the HGL sits below the pipe crown. When flow approaches or exceeds capacity, the HGL rises toward and eventually above the crown, a condition called surcharge.

The HGL is a picture of energy and pressure throughout the system. Where it sits relative to the pipe, the manhole rim, and the ground surface tells you whether the system is functioning within its intended design range.

Water distribution system hydraulic profile on a plan set showing HGL slope indicating pressure drop along a water main with service connection pressure thresholds and pipe diameter callouts

Reading the HGL in a Water Distribution System

In a water main design, the HGL slopes downward in the direction of flow as energy is lost to friction. A steeper slope indicates higher velocity or a smaller pipe diameter consuming more energy per unit of distance. A flatter slope indicates lower velocity or a larger pipe.

Most distribution systems are designed to maintain a minimum pressure of 20 to 35 psi under peak demand conditions and 40 to 80 psi under normal conditions. Three warning signs stand out when reviewing a water main HGL. If the HGL drops steeply over a short distance, the pipe is likely undersized for the demand. If the HGL falls below the minimum pressure threshold, service connections in that area will have inadequate pressure. If the HGL drops to or below the pipe elevation, the system has lost pressure entirely and a negative pressure condition creates backflow risk.

Reading the HGL in a Gravity Sewer or Stormwater System

In a gravity collection system, the pipe is designed to flow partially full under normal conditions. The HGL in a properly designed system sits below the pipe crown at peak flow. When the HGL rises above the pipe crown, the pipe is surcharged, pushing wastewater back up into manholes and risking overflow if the HGL reaches the rim elevation. In a stormwater system, surcharge forces water out of inlets and causes surface flooding.

When reviewing a gravity system HGL, check that the water surface stays below the pipe crown at design flow, that each manhole has adequate freeboard below the rim, and that the profile does not show hydraulic jumps that create turbulent, unstable conditions. Pipe slope connects directly to the HGL. A pipe that is too flat will not generate adequate velocity to keep solids in suspension. A pipe that is too steep creates scour. Both show up in the HGL when the analysis is run correctly.

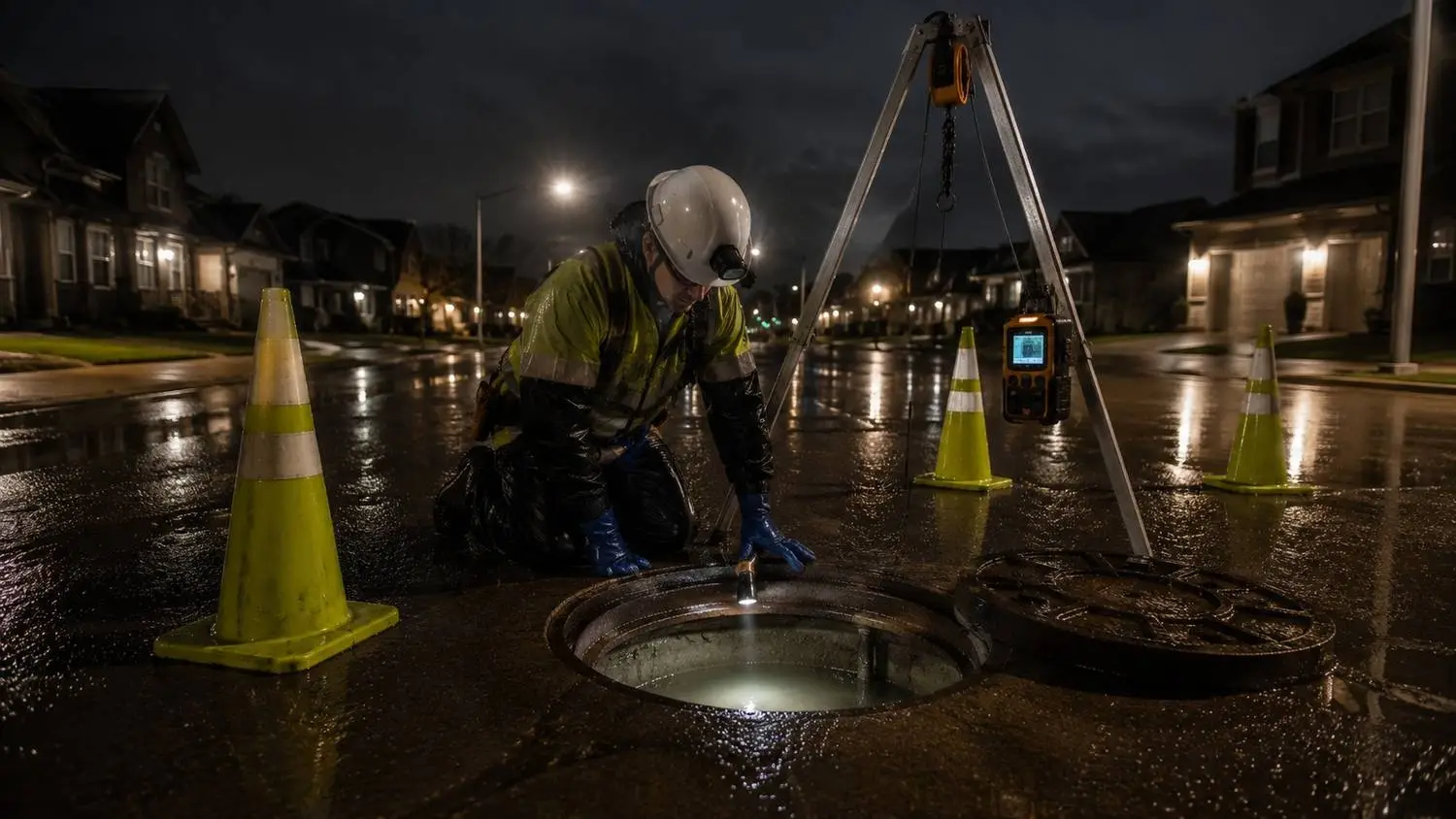

Gravity sewer manhole being inspected showing surcharge conditions with water level approaching the manhole rim elevation indicating the hydraulic grade line has risen above the pipe crown under peak flow conditions

What the HGL Reveals About System Capacity

For developers and municipal staff reviewing plans for a new connection to an existing system, the HGL analysis tells you whether the system has capacity to serve the project. A water main already running near maximum demand shows an HGL that flattens significantly before your connection point. A sewer system near capacity shows an HGL close to the pipe crown during peak flow. A surcharging manhole appears in the hydraulic model before it appears as an overflow in the field. Catching it in the model means a design change. Catching it after construction means emergency maintenance.

Pump station performance connects directly to the HGL. The total dynamic head a pump must overcome is the difference in HGL between the suction and discharge sides. When the HGL on the discharge side rises due to downstream capacity constraints, the pump operates away from its design point, consuming more energy and wearing faster.

Frequently Asked Questions

Do I need to be an engineer to read an HGL?

You do not need to be an engineer to identify warning signs. If the HGL line on a profile sheet runs above the pipe crown, approaches a manhole rim, or shows a steep drop over a short distance, those are visible flags that warrant a conversation with the engineer of record before the design is approved.

Is the HGL always shown on construction drawings?

For gravity sewer systems, HGL profiles are standard in most state design guidelines and required for regulatory submittals in Texas and Colorado. For pressure systems, the HGL analysis is typically referenced in the engineering report and shown on hydraulic model outputs.

What is the difference between the HGL and the energy grade line?

The energy grade line sits above the HGL by an amount equal to the velocity head at any given point. For most water and sewer design at typical velocities, the difference is small and the HGL is the practical reference. At high velocities in stormwater systems, the distinction becomes more significant.
