US-380 Bypass Utility Relocations: What McKinney Area Developers Must Coordinate with TxDOT Before Construction Starts

Why Roadway Projects Create Utility Problems for Nearby Development

Highway construction projects, particularly bypass and widening projects like US-380, typically require acquiring or adjusting right of way along an existing corridor, and that right of way frequently overlaps with utility infrastructure that was installed assuming a different roadway configuration. Water mains, sewer lines, and storm drainage systems, whether serving existing development or planned to serve a nearby site still in the design phase, may need to be relocated, adjusted, or temporarily taken out of service to accommodate the roadway construction.

For a developer with a site adjacent to or near the corridor, this creates a coordination problem that has nothing to do with the developer’s own permitting process but can directly affect it. If the utility infrastructure your site depends on is scheduled for relocation as part of the TxDOT project, your own utility plan, and potentially your entire development schedule, needs to account for that relocation’s timing, not just its eventual completion.

TxDOT Right of Way and What It Means for Adjacent Sites

TxDOT’s right of way needs for a project like the US-380 Bypass are typically finalized well before construction begins, but the practical impact on adjacent property, including any easement adjustments, access changes, or utility conflicts, is not always obvious from public project announcements alone. A developer evaluating a site near the corridor should confirm the specific right-of-way limits and any acquisition or easement impact on the parcel directly with TxDOT or through the project’s public right-of-way documentation, rather than assuming a site’s frontage or utility corridor is unaffected simply because it sits outside the roadway’s immediate travel lanes.

This confirmation matters because right of way limits determine not just what land TxDOT needs, but where existing utility easements may need to be relocated or where new utility crossings will need to be designed to accommodate the roadway’s final configuration.

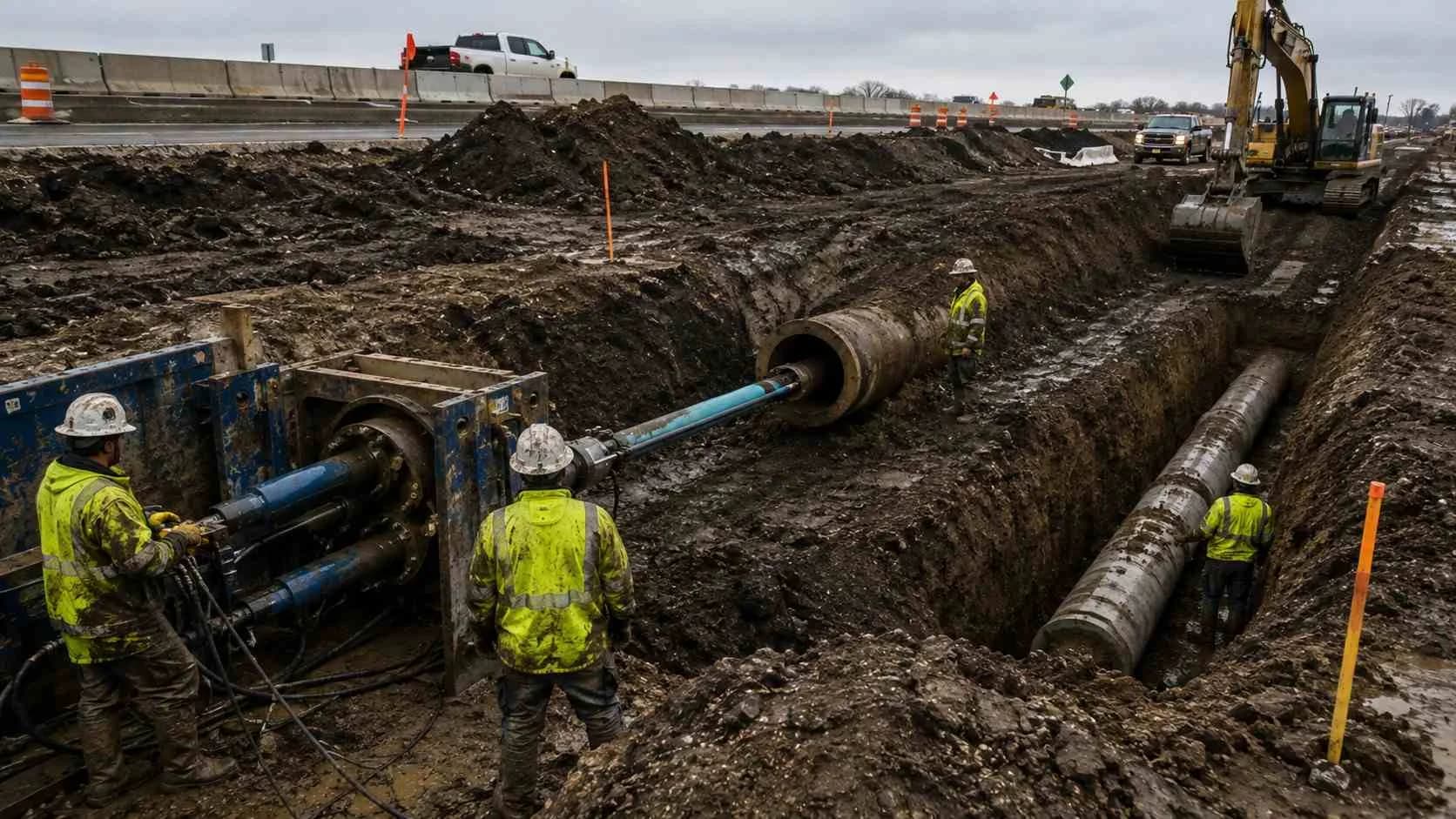

Water Line Relocations and Wastewater Crossings

Water mains running parallel to or crossing a roadway corridor slated for widening or bypass construction frequently require relocation, and the specific relocation design, alignment, depth, and casing requirements for any roadway crossing, needs to be coordinated directly with TxDOT’s own utility accommodation standards and construction schedule. A developer whose site’s water supply depends on a main running through or near the corridor should confirm the relocation’s design status and construction timeline early, since a delayed relocation can directly delay the developer’s own ability to obtain water service for a new connection.

Wastewater crossings present a related but distinct challenge, since gravity sewer lines depend on maintaining design slope through any crossing or relocation, and a roadway project’s grading changes can affect the elevation and alignment available for a sewer crossing in ways that require careful coordination between the developer’s collection system design and TxDOT’s roadway profile. Confirming how a planned sewer crossing interacts with the roadway project’s final grading plan, rather than designing the sewer crossing independently and coordinating only at construction, reduces the risk of a conflict discovered too late to resolve without cost and schedule impact.

Storm Drain Adjustments and Drainage Coordination

Storm drainage systems face similar coordination needs, since a roadway widening or bypass project typically changes the drainage patterns and conveyance capacity along the corridor, and a development site’s own storm drainage design, particularly any outfall or discharge point connecting to a roadway drainage system, needs to be coordinated with the roadway project’s current and final drainage configuration. Designing a site’s stormwater system around an assumed drainage connection that the roadway project later modifies can create a mismatch that requires redesign, added cost, or a delay in obtaining final approval for the site’s drainage plan.

Franchise Utility Conflicts and Easement Coordination

Beyond water, sewer, and storm drainage, franchise utilities, electric, gas, telecommunications, and similar dry utilities, often occupy the same right of way corridor and face their own relocation requirements as part of a roadway project. Conflicts between franchise utility relocation timing and a developer’s own utility and access plan can create additional schedule dependencies, since a developer’s site may depend on a franchise utility connection that itself depends on that utility’s own relocation being complete. Coordinating easement needs across all affected utility types, not just water and wastewater, helps a developer build a realistic understanding of every dependency affecting their project’s utility readiness.

Access Changes and Construction Sequencing

Roadway projects frequently change access points, whether temporarily during construction or permanently in the final roadway configuration, and a development site’s planned access, driveways, turn lanes, or frontage road connections, needs to be evaluated against both the interim construction phase access conditions and the final roadway configuration. A site plan designed around an assumed access configuration that changes once the roadway project reaches a later construction phase can face access-related review comments or a need for site plan revision that could have been avoided with earlier coordination.

Construction sequencing coordination extends to timing as well, since a developer’s own construction schedule, including any utility work occurring near the TxDOT right of way, may need to be sequenced around TxDOT’s own construction phases to avoid conflicts in shared work areas or overlapping traffic control needs.

Temporary Service and Utility Shutdown Planning

Where an existing utility connection serving current operations or a phased development is subject to relocation as part of the roadway project, temporary service planning becomes a practical necessity, since a utility shutdown during relocation construction can affect ongoing operations or a development’s ability to maintain service to occupied phases while relocation work proceeds. Confirming the anticipated shutdown or service interruption timeline for any affected utility, and planning temporary service arrangements where continuity is critical, should be addressed well before the relocation construction begins, not discovered as an unexpected service interruption once TxDOT’s contractor begins work.

Permit Coordination and Schedule Risk

Utility relocation work within TxDOT right of way generally requires its own permitting and coordination process with TxDOT, separate from a developer’s municipal plan review and permitting process, and a developer’s overall project schedule needs to account for both processes running in parallel, with awareness of how a delay in one can affect the other. A developer who assumes their project’s utility plan is independent of the adjacent roadway project’s own permitting and construction timeline risks discovering that a critical utility connection or crossing cannot proceed until the TxDOT coordinated relocation work reaches a specific milestone, a dependency that should be identified and built into the project schedule from the outset rather than discovered mid construction.

Frequently Asked Questions

How early should we start coordinating with TxDOT if our site is near the US-380 corridor?

As early as initial site planning and due diligence, since confirming right of way limits, existing utility conflicts, and the roadway project’s current construction phase and schedule can directly affect site layout, access design, and utility plan decisions made well before formal plan submittal.

Who is responsible for the cost of relocating a utility that conflicts with a TxDOT roadway project?

Responsibility depends on the specific utility, the existing easement or franchise agreement terms, and the roadway project’s own utility accommodation policy, and this should be confirmed directly for each affected utility rather than assumed, since cost responsibility can vary by utility type and ownership.

Can our development proceed if a critical utility relocation tied to the roadway project is delayed?

This depends on whether your project’s utility plan has an alternative path to service that doesn’t depend on the delayed relocation, which is exactly why identifying these dependencies early allows for contingency planning rather than discovering the dependency only once a delay has already occurred.

Does TxDOT coordinate directly with individual developers, or only with the utility owners themselves?

TxDOT’s utility coordination process generally works through the utility owner of record for each affected utility, meaning a developer’s engineering team typically needs to coordinate with both the utility owner and, where relevant, TxDOT directly to understand how a relocation affects the developer’s own project timeline.
